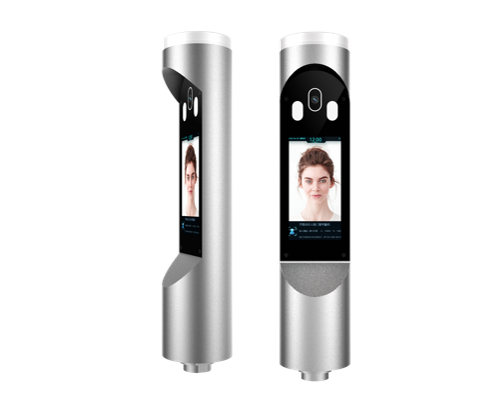

RG01 Dynamic Face Access Control Channel Machine

Super large 7-inch HD display screen

Face recognition speed is less than 0.5 seconds

Voice broadcast

Consult now


Technical parameters:

(If the product is updated or its specifications and parameters change during the listing period, please contact our business personnel to double check the latest specifications and parameters.)

Name

Function description

Face recognition

Face capacity

3000

Face recognition accuracy

≥99.9%

Face recognition time

<0.6s

Recognition range

Recognition distance: 0.5~2 m, recognition height: 1.2~2 m

Product parameters

System

Embedded Linux operating

Sensor

CMOS sensor

Resolution

1024*600

Display screen

Large 7-inch HD display screen

Product functions

Algorithm

Face detection, live inspection, face tracking, quality evaluation and face comparison

Software functions

Batch personnel mnagement, data synchronization, access record savom, and Wiggins or switch quantity passthrough

Network protocol

HTTP、RTSP、TCP/IP

External interface

Network communication

NetWork Communication: 1 100M adaptive RJ45 interface;

Power input

1 DC 12 V voltage interface;

Signal output

1-way switch output interface;

Wiggins input

1 Wiggins input interface, which supports the signal input in the Wiggins 26 and 34 format;

Wiggins output

1 Wiggins output interface, which supports the signal output in the Wiggins 26 and 34 format;

USB  interface

1-way USB HOST interface

Operating environment

Whole machine's power

MAX 8W

Operating temperature

-30-70℃

Operating humidity

5%-95% (no condensation)

Product appearance

Size

313×113×24.6mm

Openning size

35-38 mm, recommended: 35mm

Weight

1.2kg
